Product Details

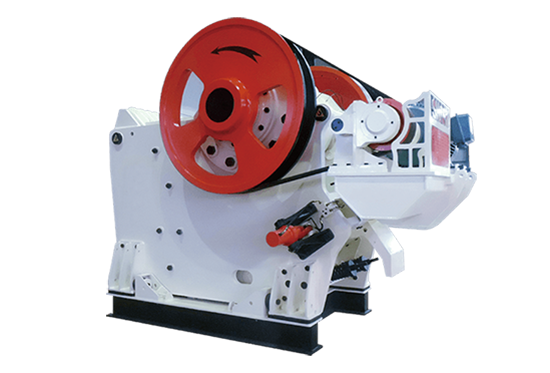

PEW Series Jaw Crusher is suitable for crushing compressive strength of not more than 280Mpa of ore, rock, slag, etc., the maximum mass of broken material shall not be greater than the provisions of the technical parameters table.Compared with the traditional jaw crusher, PEW Series Jaw Crusher pay more attention to the details in the design：the use of high-strength materials, advanced manufacturing process.PEW Series Jaw Crusher has the features of large crushing ratio,product size uniformity,solid structure,stable work,easy maintenance,low operation cost.
Benefits Features
1.Longer jaw plates,higher output
2.Fast discharge opening adjustment device
3.Larger bearings and stronger carrying capacity
4.Bearing seat with integral cast steel structure
5.More advancedmovable jaw assembly and durable
6.High intensity with finite element analysis technology
7.World-level manufacturing technology and highest-level material
| Model | Feeder Opening Size(mm) | Export Clearance(mm) | Discharge port size (mm)/Capacity(t/h) | Power(kw) | |||||||||||
| 70 | 80 | 90 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 250 | ||||
| PEW100 | 1000×630 | 600 | 90-160 | 120-180 | 130-190 | 150-200 | 160-210 | 180-230 | 75 | ||||||
| PEW110 | 1100×850 | 720 | 180-240 | 200-265 | 220-295 | 245-320 | 300-385 | 350-455 | 400-520 | 460-590 | 110 | ||||
| PEW125 | 1250×950 | 810 | 270-360 | 325-430 | 385-505 | 445-580 | 500-650 | 560-725 | 620-800 | 160 | |||||
| PEW140 | 1400×1070 | 910 | 360-470 | 425-555 | 490-640 | 555-725 | 625-815 | 690-900 | 725-985 | 200 | |||||
| PEW160 | 1600×1200 | 1020 | 490-640 | 560-730 | 635-825 | 710-920 | 780-1010 | 855-1105 | 930-1200 | 250 | |||||
| PEW210 | 2100×1600 | 1360 | 800-880 | 900-1005 | 1000-1125 | 1100-1225 | 1200-1375 | 1300-1500 | 450 | ||||||
